Wood Recommended Products

Air Assist Airless

Bobcat Air Assist Airless

Bobcat

C.A.Technologies introduces the latest addition to the CAT gun line - the Bobcat Air Assist Airless gun designed for production wood and metal finishing. Features include lightweight design, stainless steel fluid passages and an integrated fluid filter. The handle is ergonomically designed to reduce fatigue and fit comfortably in any size hand. The trigger pull has been designed to be ultra light resulting in less muscle strain and operator fatigue. An innovative trigger safety has also been integrated into the gun to provide optimum safety. The Bobcat's superior atomization is achieved with the precise geometry of the airless tip and HVLP air cap, giving you the finest finish possible. C.A.Technologies is now offering a new lightweight and flexible fluid hose. The hose is 1/8" in diameter and will be standard with all Bobcat wall mount and cart mount outfits.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 1/4" NPS (m)
Weight - 17 oz.
Requires 6 CFM

Part Sheet: Bobcat
Sales Sheet: AAA Line
Sales Sheet: C.A.Technologies AAA Kremlin™ Tip Conversion List
Sales Sheet: Wood Coating Solutions


Cougar Air Assist Airless

Cougar

The Cougar Air Assist Airless is a fine finish gun for production wood or metal fine finish spraying. Features include all stainless steel fluid passages, ergonomic design, integrated fluid filter and easy trigger pull. Superfine soft atomization is achieved with precise geometry of airless fluid tip and low volume aircap that mix at the locus of atomization. Delivers desired finishes at production speeds. Pump (below) and gun system can be operated with a 1.5 hp compressor.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 1/4" NPS (m)
Weight - 23 oz.
Requires 6 CFM

Part Sheet: Cougar
Sales Sheet: AAA Line
Sales Sheet: C.A.Technologies AAA Kremlin™ Tip Conversion List
Sales Sheet: Wood Coating Solutions


Air Assist Airless 14:1 Peak Performance Fine Finish Pump

C14 Cart Mount

The Air Assist Airless pump from C.A.T. is an all stainless 14:1 ratio pump for production fine finish spraying of wood or other fine finish applications. The new 14:1 Peak Performance Series pump incorporates a new completely redesigned air motor that features a stationary magnet poised for endurance and longevity. This simple direct acting valve is also resistant to icing, has a long life carbon fiber cylinder and integrated noise suppression design for quiet operation. The fluid section is all stainless featuring a non-contact pump tube that never wears out. Also featured is a cartridge style piston seal and guide for quick field replacement. Unit has a large capacity solvent cup and 360 degree fluid inlet/outlet orientation.

Specifications:
Pump Ratio - 14:1
Max Air Pressure - 107 PSI
Max Fluid Pressure - 1500 PSI
Fluid Volume - 1/3 GPM per cycle (supports one gun up to .024 orifice size)

Part Sheet: AAA Cougar Peak 14:1 Outfit
Part Sheet: AAA Bobcat Peak 14:1 Outfit
Part Sheet: AAA Cougar 14:1 Outfit
Part Sheet: AAA Bobcat 14:1 Outfit
Sales Sheet: AAA 14:1
Sales Sheet: C.A.Technologies AAA Kremlin™ Tip Conversion List
Sales Sheet: Wood Coating Solutions


Portable Air Assist Airless 14:1 - "Bringing portability to the market of fine finishing"

OC14-PC

C.A.Technologies Cougar/Bobcat spray outfits are now available as a self-contained unit with 2 HP compressor, 4-gallon air tanks and the AAA pump all packed nicely on a sleek compact cart, making it the most effective tool for any job any place.

Specifications:
2 HP Compressor (100 P.S.I. MAX)
Cougar/Bobcat AAA Gun
No Stall Air Motor Design
4 Gallon Air Tank (Twin 2 Gallon)
14:1 Ratio Stainless Steel Pump
Compact Design

Sales Sheet: AAA 14:1 Portable Cart Unit
Sales Sheet: C.A.Technologies AAA Kremlin™ Tip Conversion List
Sales Sheet: Wood Coating Solutions


Air Assist Airless 20:1 Fine Finish Pump

C20 Cart Mount

The New Air Assist Airless pump from C.A.T. is an all stainless 20:1 ratio pump for higher viscosity materials and multi-gun operation, incorporates a totally enclosed throat seal to reduce contamination as well as a sight gauge for ease of checking lubricant levels. This is a durable and dependable pump for continuous operation with a 2 GPM displacement for single or multiple gun applications (8 guns up to 13 thousands tip). The air motor magnetic no stall trip mechanism insures smooth pump stroke transition with no "surge" or "wink" in the spray pattern maximizing transfer efficiency. The fluid section is all stainless steel and can be used for most solvent and waterborne coatings, paints, pigmented lacquers, pre and post catalyzed materials and primers. The new "Cat Fast Clamp" makes for easy and rapid removal for maintenance of the fluid section from the air motor. These were built for easy "field" repairs with fewer parts lowering maintenance costs and equipment down time. An optional separate fluid section fluid filter with multiple outlets is also available. The standard fluid section utilizes a spring seal configuration on the lower portion and a self-adjusting "V" packing on the upper portion. An optional self-adjusting "V" packing for the lower portion is also available for more abrasive coatings.

Specifications:
Pump Ratio - 20:1
Max Air Pressure - 100 PSI
Max fluid Pressure - 2000 PSI
Fluid Volume - 2 GPM (supports 8 guns up to .013 orifice size)

Part Sheet: AAA C-20
Sales Sheet: AAA C-20
Sales Sheet: C.A.Technologies AAA Kremlin™ Tip Conversion List
Sales Sheet: Wood Coating Solutions



Spray Guns

CAT-X-C Classic (Fine Finish)

CAT-X-C

C.A.Technologies is proud to introduce our new CAT-X professional grade spray gun. The CAT-X provides extreme atomization, handle ergonomics, and fluid delivery superior to all the competitive guns on the market today. The CAT-X includes the HVLP air cap and the pressure reduced air cap to meet all the codes and regulations throughout the United States. The CAT-X comes in five distinctive handle designs, allowing you to customize your finishing experience. Model "C" is anodized in classic clear.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (f)
Weight - 20 oz.
24-1411 Requires 13.5 CFM @ 29 PSI
24-1352 Requires 11.0 CFM @ 35 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CAT-X
Sales Sheet: CAT-X
Sales Sheet: Wood Coating Solutions


CAT-X-B Black Teflon™ (Fine Finish)

CAT-X-C

C.A.Technologies is proud to introduce our new CAT-X professional grade spray gun. The CAT-X provides extreme atomization, handle ergonomics, and fluid delivery superior to all the competitive guns on the market today. The CAT-X includes the HVLP air cap and the pressure reduced air cap to meet all the codes and regulations throughout the United States. The CAT-X comes in five distinctive handle designs, allowing you to customize your finishing experience. Model "B" is black anodized with a teflon™ hard coat for an easy clean.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (f)
Weight - 20 oz.
24-1411 Requires 13.5 CFM @ 29 PSI
24-1352 Requires 11.0 CFM @ 35 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CAT-X
Sales Sheet: CAT-X
Sales Sheet: Wood Coating Solutions


CAT-X-F Flag (Fine Finish)

CAT-X-C

C.A.Technologies is proud to introduce our new CAT-X professional grade spray gun. The CAT-X provides extreme atomization, handle ergonomics, and fluid delivery superior to all the competitive guns on the market today. The CAT-X includes the HVLP air cap and the pressure reduced air cap to meet all the codes and regulations throughout the United States. The CAT-X comes in five distinctive handle designs, allowing you to customize your finishing experience. Model "F" is anodized with an American flag.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (f)
Weight - 20 oz.
24-1411 Requires 13.5 CFM @ 29 PSI
24-1352 Requires 11.0 CFM @ 35 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CAT-X
Sales Sheet: CAT-X
Sales Sheet: Wood Coating Solutions


CAT-X-M Marble (Fine Finish)

CAT-X-C

C.A.Technologies is proud to introduce our new CAT-X professional grade spray gun. The CAT-X provides extreme atomization, handle ergonomics, and fluid delivery superior to all the competitive guns on the market today. The CAT-X includes the HVLP air cap and the pressure reduced air cap to meet all the codes and regulations throughout the United States. The CAT-X comes in five distinctive handle designs, allowing you to customize your finishing experience. Model "M" is anodized with a red marble design.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (f)
Weight - 20 oz.
24-1411 Requires 13.5 CFM @ 29 PSI
24-1352 Requires 11.0 CFM @ 35 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CAT-X
Sales Sheet: CAT-X
Sales Sheet: Wood Coating Solutions


CAT-X-MX Flag of Mexico (Fine Finish)

CAT-X-MX

C.A.Technologies is proud to introduce our new CAT-X professional grade spray gun. The CAT-X provides extreme atomization, handle ergonomics, and fluid delivery superior to all the competitive guns on the market today. The CAT-X includes the HVLP air cap and the pressure reduced air cap to meet all the codes and regulations throughout the United States. The CAT-X comes in five distinctive handle designs, allowing you to customize your finishing experience. Model "MX" is anodized with a Flag of Mexico design.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (f)
Weight - 20 oz.
24-1411 Requires 13.5 CFM @ 29 PSI
24-1352 Requires 11.0 CFM @ 35 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CAT-X
Sales Sheet: CAT-X
Sales Sheet: Wood Coating Solutions


CAT-X-S Skulls (Fine Finish)

CAT-X-C

C.A.Technologies is proud to introduce our new CAT-X professional grade spray gun. The CAT-X provides extreme atomization, handle ergonomics, and fluid delivery superior to all the competitive guns on the market today. The CAT-X includes the HVLP air cap and the pressure reduced air cap to meet all the codes and regulations throughout the United States. The CAT-X comes in five distinctive handle designs, allowing you to customize your finishing experience. Model "S" is anodized with a green and black skull design.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (f)
Weight - 20 oz.
24-1411 Requires 13.5 CFM @ 29 PSI
24-1352 Requires 11.0 CFM @ 35 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CAT-X
Sales Sheet: CAT-X
Sales Sheet: Wood Coating Solutions


CPR-G - CAT Pressure Reduced (Fine Finish)

CPR-G

Once again CAT is proving why we are the technology leading spray gun manufacturer. The CPR spray guns from CAT combine the transfer efficiency of HVLP with the speed and finish quality of conventional air spray. The nozzle requires 11cfm at 29 PSI recommended inlet pressure. The CPR guns are available in 2 types of packs, one for the automotive industry, and one for the wood industry. These kits will also be available with your standard 1qt. aluminum gravity cup or the popular 3M PPS. Both gravity versions include the new CPR air cap and the HVLP air cap, along with 3 different needle and nozzle sizes, multi-purpose wrench, nozzle wrench, cleaning brush and mini regulator.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
23-1301 Requires 13.5 CFM @ 29 PSI
23-2101 Requires 11.0 CFM @ 29 PSI
Only available in a CAT Pack or E-Pack

Part Sheet: CPR-G
Sales Sheet: CPR
Sales Sheet: Wood Coating Solutions

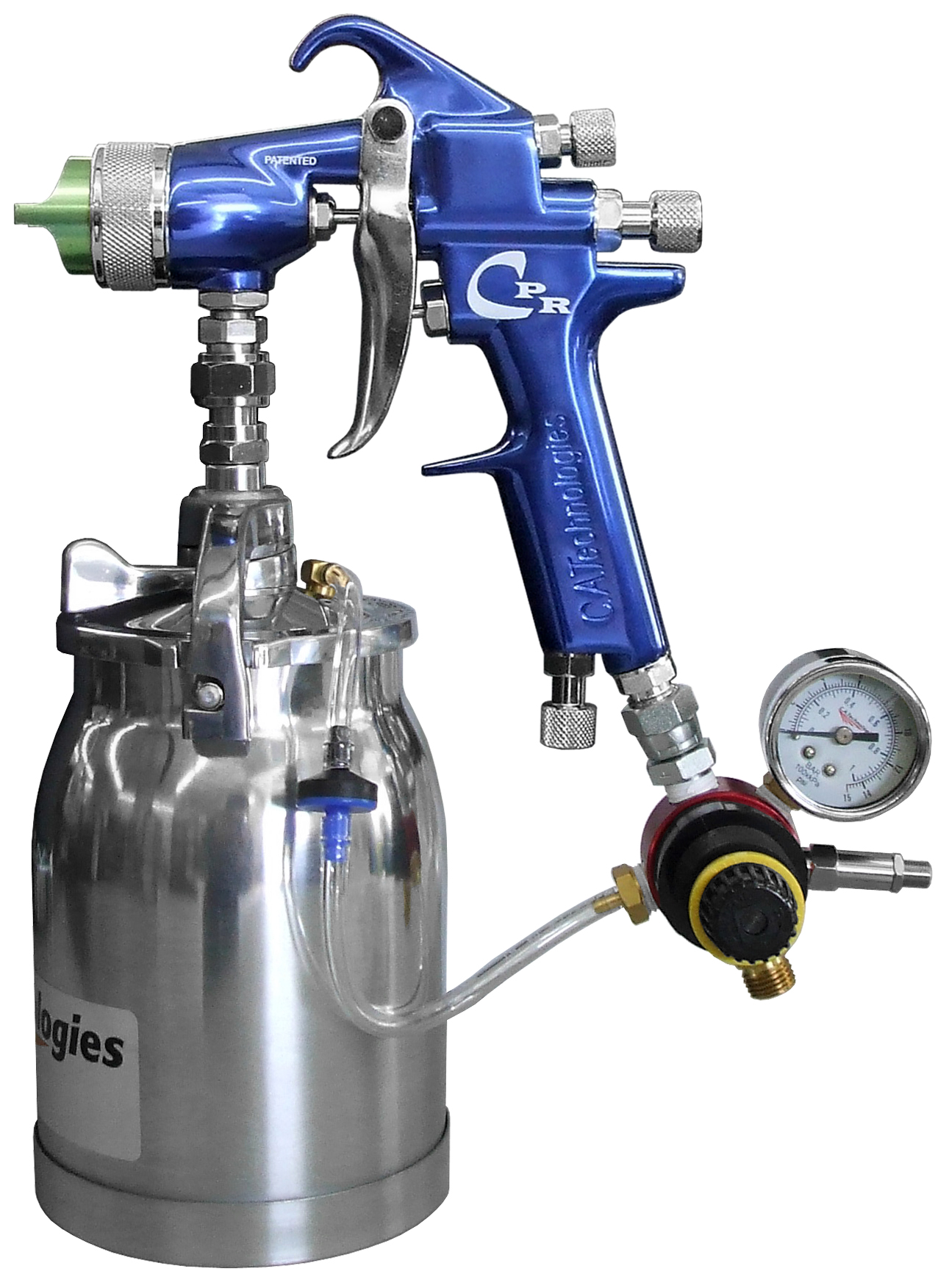

CPR - CAT Pressure Reduced (Fine Finish)

CPR

The CPR spray guns from CAT combine the transfer efficiency of HVLP with the speed and finish quality of conventional air spray. The nozzle requires 11cfm at 29 PSI recommended inlet pressure. The CPR guns available in the pressure versions include the new CPR air cap and the HVLP air cap, along with 3 different needle and nozzle sizes, multi-purpose wrench, nozzle wrench, cleaning brush and mini regulator. These kits will also be available with your standard 1qt 51-303-R2 pressure cups or the popular 3M PPS 1qt.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 20 oz.
23-1301 Requires 13.5 CFM @ 29 PSI
23-2101 Requires 11.0 CFM @ 29 PSI
Only available in a CAT Pack

Part Sheet: CPR
Sales Sheet: CPR
Sales Sheet: Wood Coating Solutions

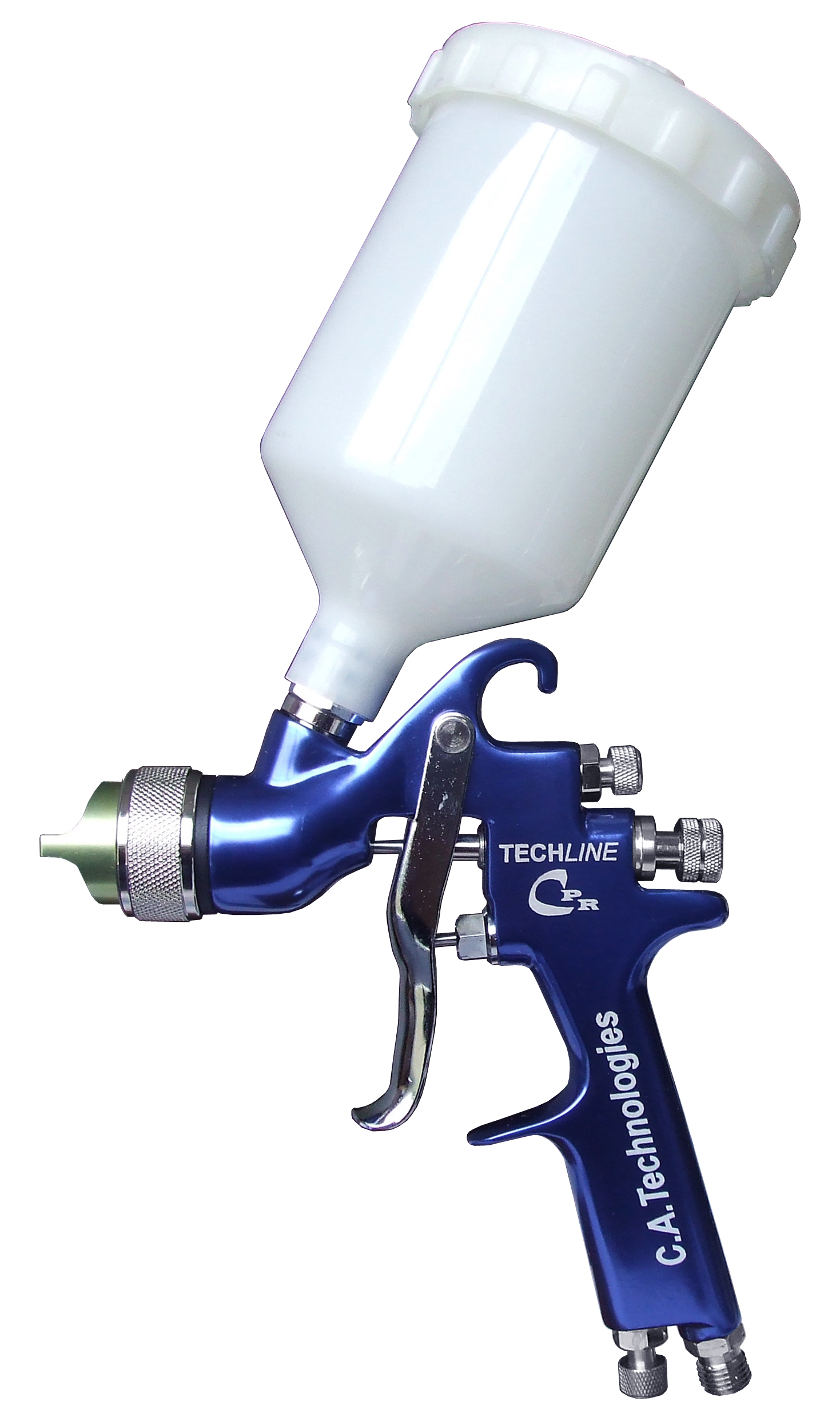

CPR-T3 - CAT Pressure Reduced (Economy)

CPR-T3

The CPR-T3 gravity feed spray gun offers a less expensive economy version of the reduced pressure spray technology. The CPR-T3 includes the HVLP and reduced pressure air caps along with three different needle and nozzles to spray a wide range of coatings. The CPR-T3 also includes a plastic 1qt. gravity cup, multi-purpose wrench and cleaning kit. The spray gun has plated brass passages and a non-replacable head insert. The CPR-T3 is the best economy spray gun in the industry.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
23-1301 Requires 13.5 CFM @ 29 PSI
23-2101 Requires 11.0 CFM @ 29 PSI

Part Sheet: CPR-T3
Sales Sheet: CPR
Sales Sheet: Wood Coating Solutions


Jaguar 100H HVLP (Gravity, General Purpose / Low CFM)

Jaguar 100H

The J100H is a general purpose gravity feed gun intended for automotive and wood finishing. Features include all stainless steel fluid passages, low volume nozzles for small HP compressor use and self-adjusting needle packing. Comes standard with 750cc aluminum gravity cup. This gun complies with all HVLP environmental regulations.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
CFM is dependant on Air Cap (21-1090 Low CFM air cap requires 6 CFM @ 15 PSI)
Available in a CAT Pack or E-Pack

Part Sheet: Jaguar 100H (J100H)
Sales Sheet: Jaguar 100H (J100H)
Sales Sheet: Wood Coating Solutions


FE-Line LCFM (Low CFM)

FE-LCFM

The new FE-Line LCFM HVLP gun is our low CFM lightweight ergonomic spray gun.The FE-Line LCFM’s standard setup will be 1.3 x 1090.This setup is designed for use with a low air consumption compressor. The 1090 air cap only uses 6cfm, which enables the gun to be operated with a 2hp compressor. The FE-Line’s lightweight ergonomic design also reduces fatigue and increases mobility.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 15 oz.
CFM is dependant on Air Cap (21-1090 Low CFM air cap requires 6 CFM @ 15 PSI)
Available in a CAT Pack

Part Sheet: FE-Line Low CFM (FE-LCFM)
Sales Sheet: FE-Line Low CFM (FE-LCFM)
Sales Sheet: Wood Coating Solutions


Techline T3 HVLP (Gravity)

Techline T3

The Techline T3 is an economically priced gravity feed gun for use with a range of coatings from primers to top coats to stains. The T3 combines C.A.T. fine finish nozzles on a low-cost gun body so you can achieve the best of both worlds -- economy and fine finish. Features include air adjusting valve and 750cc plastic cup. This gun complies with all environmental regulations for HVLP.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.5mm (m)
Weight - 20 oz.
Requires 13.5 CFM @ 45 PSI

Part Sheet: Techline T3 (T3)
Sales Sheet: Techline T3 (T3)
Sales Sheet: Wood Coating Solutions



TJR. HVLP (Gravity) | TJR. DELUXE | TJR. GLAZE

Techline JR.

The Techline TJR is an economically priced gravity feed mini gun for use with a range of coatings from top coats to stains. This is great for all your touch-up needs. Comes standard with with a 250cc aluminum and 250cc plastic cup. Also included are 2 extra nozzle kits. This gun complies with all environmental regulations for HVLP.

The Deluxe TJR. kit from CAT is intended to give finishers the best of both worlds by including the regular air cap for all your touch up needs and the special round air cap specifically designed for shading and other specialty applications. Also included in the kit are the 1.0 and 1.2 needle and nozzle setups.

The Glaze TJR. kit from CAT is intended to give finishers the option of being able to spray their glaze on the surface-great for shading or lay a bead of material with precisision. The New Glaze nozzle works without air and simply allows you to lay the smallest bead of material on your surface great for placing the glaze in raised door panels or special projects.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 16mm x 1.0mm (m)
Weight - 15 oz.
Requires 4 CFM

Part Sheet: Techline JR (TJR)
Sales Sheet: Techline JR (TJR)
Sales Sheet: Wood Coating Solutions


Tomcat 100C (General Purpose)

Tomcat

The T100C is an economical general purpose conventional air spray gun for spraying a wide range of coatings. Designed for production use, the Tomcat is perfect for all coatings from thin to thick, stains to glue. Can also be used with internal mix nozzles as well as carbide tipped fluid nozzles for abrasives. This gun features a self- adjusting needle packing, inexpensive nozzle replacement and rugged construction.

Specifications:
Air Inlet - 1/4” NPS (m)
Fluid Inlet - 3/8 NPS (m)
Weight - 19 oz.
CFM is dependant on Air Cap

Part Sheet: Tomcat 100C (T100C)
Sales Sheet: Tomcat 100C (T100C)
Sales Sheet: Wood Coating Solutions



2 Quart Pressure Cups

51-132 (Techline 2 Quart - Double Regulated)

51-132

The Techline 2 quart is simple in design and versatile in operation. This economically priced pressure cup is tough enough to hold up to daily industrial and automotive operation and is designed for easy use and cleaning. The 51-132 comes with a convenient carrying handle and easy open screw lid. This unit has a bypass regulator, gage, and a 50 psi working pressure. Recommended for solvent based materials.

Part Sheet: 51-130 & 51-132
Sales Sheet: Techline 2 Quart
Sales Sheet: Wood Coating Solutions










51-602 (Bandit - Double Regulated)

51-602

The Bandit from C.A.T. is by far the best 2 quart in the industry and at the right price. The band clamp offers 360 degrees of sealing pressure with the turn of one knob, no threads to stick and no multiple lid knobs to turn. Comes with a rigid liner for quick color change and cleaning. The underside of the lid, fittings and fluid tube are all 300 series stainless steel and include a splash guard so you don’t have to worry about waterborne materials or corrosion. The wide lid opening makes filling and refilling a snap. The Bandit offers all the features you need in a 2 quart. Recommended for solvent based or water based materials.

Part Sheet: 51-600 & 51-602 (Bandit 2 Quart)
Sales Sheet: Bandit 2 Quart
Sales Sheet: Wood Coating Solutions







2.5 Gallon Pressure Tanks

51-202 & 51-802

51-202 51-802

The 51-202 2.5 gallon non ASME tank from C.A.T. is constructed from heavy gage steel. The tank has wheels for maneuverability or optional stationary feet. Recommended for solvent based materials.

The 51-802 2.5 gallon non ASME tank from C.A.T. is constructed from stainless steel. The tank has wheels for maneuverability or optional stationary feet. Recommended for solvent based or water based materials.

Part Sheet: 2.5 Gallon (51-201/202/202SS/207)
Part Sheet: 2.5 Gallon Stainless Steel (51-801/802)
Sales Sheet: Pressure Tanks
Sales Sheet: 2.5 Gallon Liners
Sales Sheet: Wood Coating Solutions
