Filters and Coalescers

Filters

52-511 52-512 52-513 52-515 52-533 52-534

The most effective low cost product on the market. This unit provides one micron filtration of water and dirt in compressed air lines. Rated at 60 SCFM, these units are recommended for point of use applications. Features include manual drain, heavy duty metal bowel construction, easy spin-off cartridge replacement. Also included are metal regulator/s and glass faced gage for accurate pressure control. Maximum air pressure is 150 PSIG.

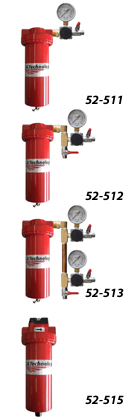

52-511 - Unit includes one regulator for single gun operation.
52-512 - Unit includes one regulator and main line blow off. Intended for single gun operation, this
     unit also includes two 1/4” ball valves.
52-513 - Deluxe unit includes two regulators for two gun operation plus main line blow off. Also
     included are three 1/4” ball valves.
52-515 - Unit includes filter, 1/2” port sizes and comes with auto drain and filter load indicator
     standard.
52-551 - Replacement Cartridge.





This unit is a point of use oil/water filter with a desiccant drying cartridge for single gun painting operations where dry clean air is critical. Perfect for low volume shops.

52-533 - Unit includes mini desiccant dryer.

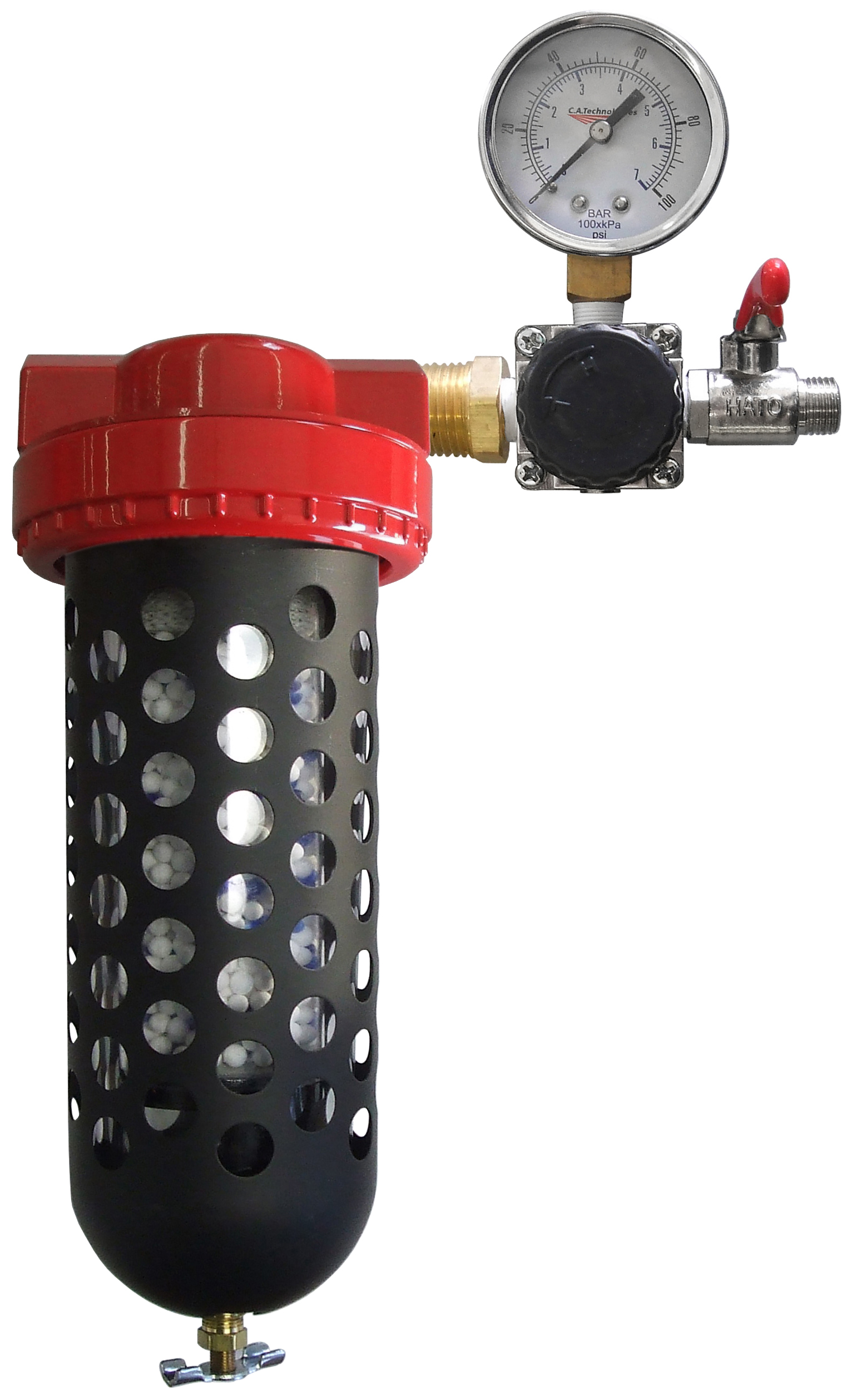

52-534 - Unit includes one regulator for single gun operation.
52-559 - Replacement Cartridge.

Part Sheet: 52-511
Part Sheet: 52-512
Part Sheet: 52-513
Part Sheet: 52-515
Part Sheet: 52-533
Part Sheet: 52-534
Sales Sheet: Filter Coalescer











Filters & Coalescers

52-520 52-522 52-523 52-551 & 52-553

The Filter / Coalescer is a two stage combination unit that offers the finest system for removal of water, dirt and oil in the industry. Due to the prefilter design this unit can be used in high contamination areas without high element replacement rates. The first stage removes particles and water while the 2nd stage removes oil contaminants. This unit is rated at 60 SCFM and removes water, dirt and oil to 0.01 micron at 98.99998% efficiency. For point of use operation.

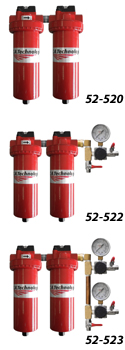

52-520 - Unit includes filter / coelescer only. It has 1/2” port sizes and comes with auto drain and
     filter load indicators standard.
52-522 - Unit includes filter / coelescer with one regulator and two ball valves. Port sizes are 1/2”
     and come with auto drain and filter load indicators standard. Second ball valve is used for
     main line.
52-523 - Unit includes filter / coelescer with two regulators and three ball valves. Third ball valve
     used for main line. Unit has 1/2” port sizes and comes with auto drain and filter load
     indicators standard.
52-551 - Replacement Cartridge (1st Stage)
52-553 - Replacement Cartridge (2nd Stage)

Part Sheet: 52-520
Part Sheet: 52-522
Part Sheet: 52-523
Sales Sheet: Filter Coalescer




Main Line Combo

52-535

52-535 - Combo unit is designed to remove bulk oil, dirt and water to 0.01 microns. Unit combines
     first stage separator and second stage coalescer. Perfect for removing contaminants to
     extend life of down stream units. Second stage comes with filter load indicator while auto
     drains are standard on both units. Rated at 90 SCFM and has 3/4” ports.
52-557 - Replacement Cartridge (1st Stage)
52-558 - Replacement Cartridge (2nd Stage)

Part Sheet: 52-535
Sales Sheet: Filter Coalescer













Filter / Dryer

52-531

52-531 - This unit is a point of use two stage oil/water filter with a desiccant drying cartridge for
     single gun painting operations where dry clean air is critical, such as automobile or fine
     wood finishing. Desiccant unit has an indicator to show when unit is saturated and needs
     replacement. Unit comes with ball valve at inlet and regulator for single gun regulation.
     This is what all fine finishers should have. Maximum flow is 25 SCFM and rated to one
     (1) micron.
52-554 - Replacement Cartridge (1st Stage)
52-555 - Replacement Cartridge (2nd Stage)

Part Sheet: 52-531
Sales Sheet: Filter Coalescer
